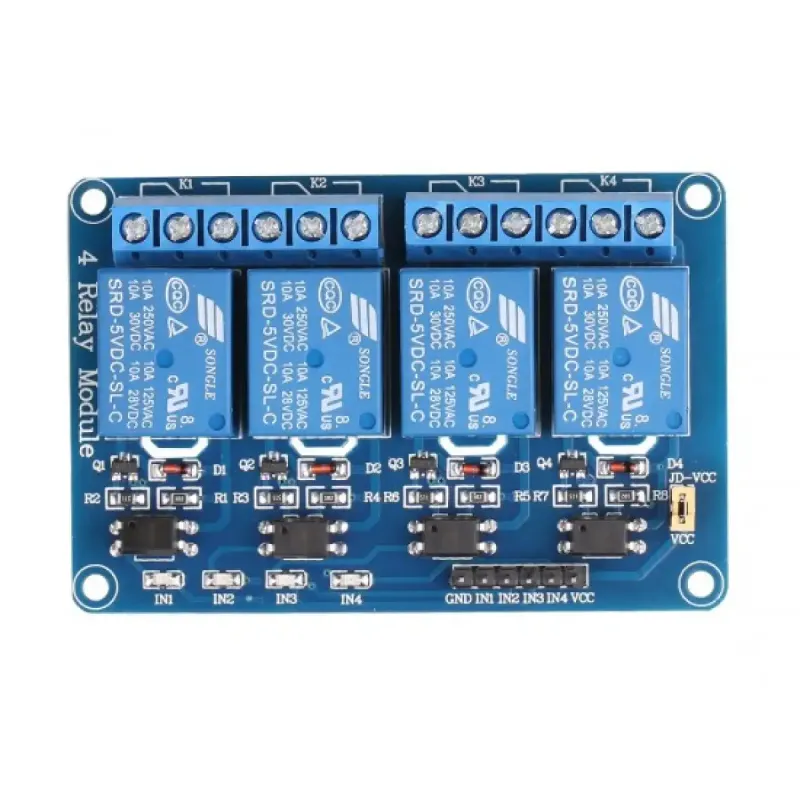

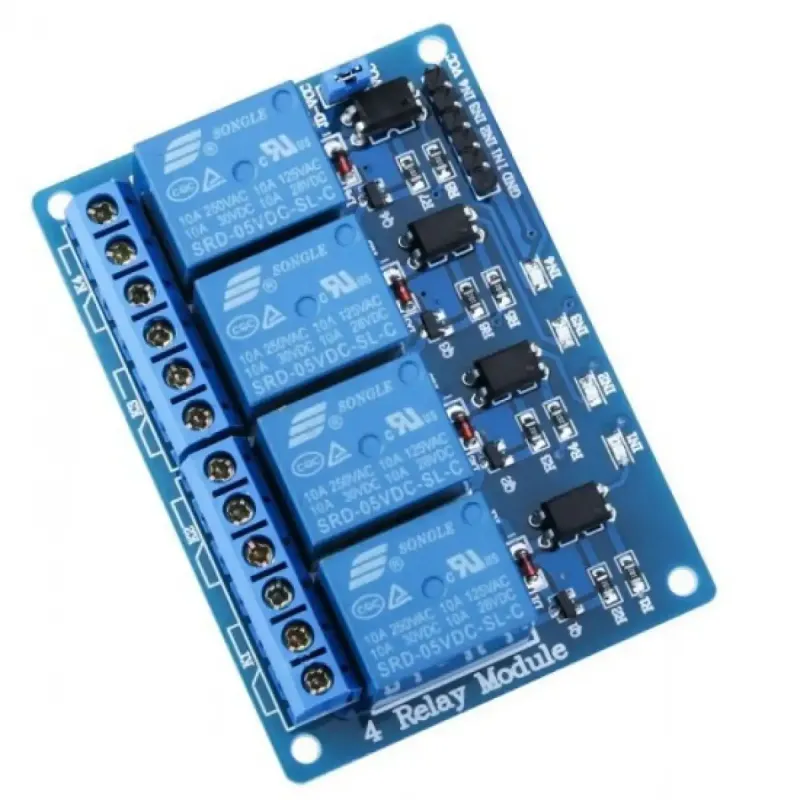

4 channel 5v relay module with Optocoupler

4 channel 5v relay module

Shop the 4 channel 5v relay module with optocoupler isolation at IT Junction. This 4 channel relay board module can be controlled by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on.

Key features

• 4 channel relay board
• Operating Voltage : 3.3V - 5V DC
• Max Input Current : 20mA
• Relay output Contact Current Capacity at AC250V: 10A
• Relay output Contact Current Capacity at DC5V: 10A
• Standard TTL Level logic controlled (AVR, Arduino, 8051, PIC, ARM)

Specification and Features :-

• One normally closed contact and one normally open contact
• Triode drive, increasing relay coil
• High impedance controller pin
• Pull-down circuit for avoidance of malfunction
• Power supply indicator lamp
• Control indicator lamp
• Indicator for Relay output status
• Can be used to control various appliances & other Equipment With Large current upto 10 amp
• The module is compliant with international safety standards, control and load areas isolation trenches

Specifications

Frequently asked questions

what is 5v relay module

It is a 4 Channel , 5V Relay Board Module for a wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on can be controlled by them.

what microcontrollers are compatible with this module?

It supports standard TTL Level logic controlled microcontrollers including AVR, Arduino, 8051, PIC, and ARM.

what is the current capacity of the relay output?

The relay output contact current capacity at AC250V is 10A and at DC5V is 10A, and it can be used to control various appliances and other equipment with large current up to 10 amp.

what is the operating voltage?

The operating voltage is 3.3V - 5V DC with a maximum input current of 20mA.
